Douglas® Baseball & Softball Double Batting Cage Frame

Description

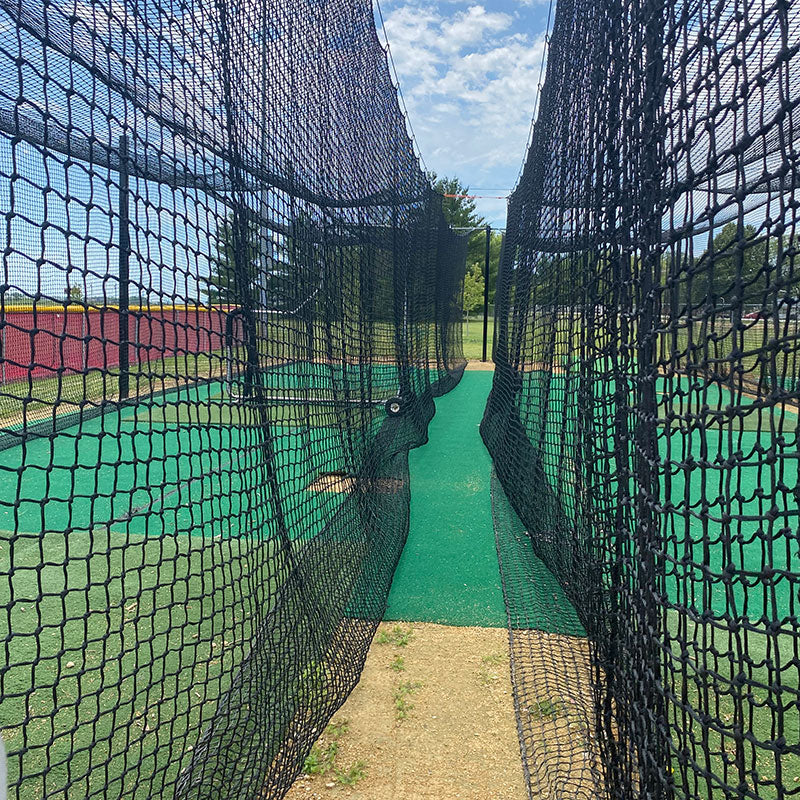

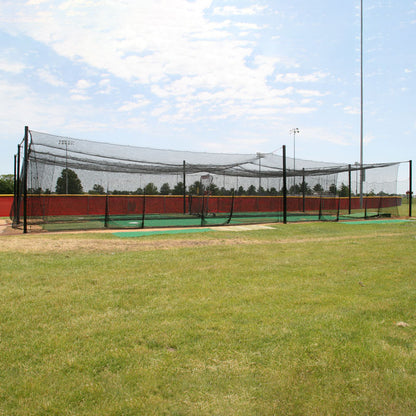

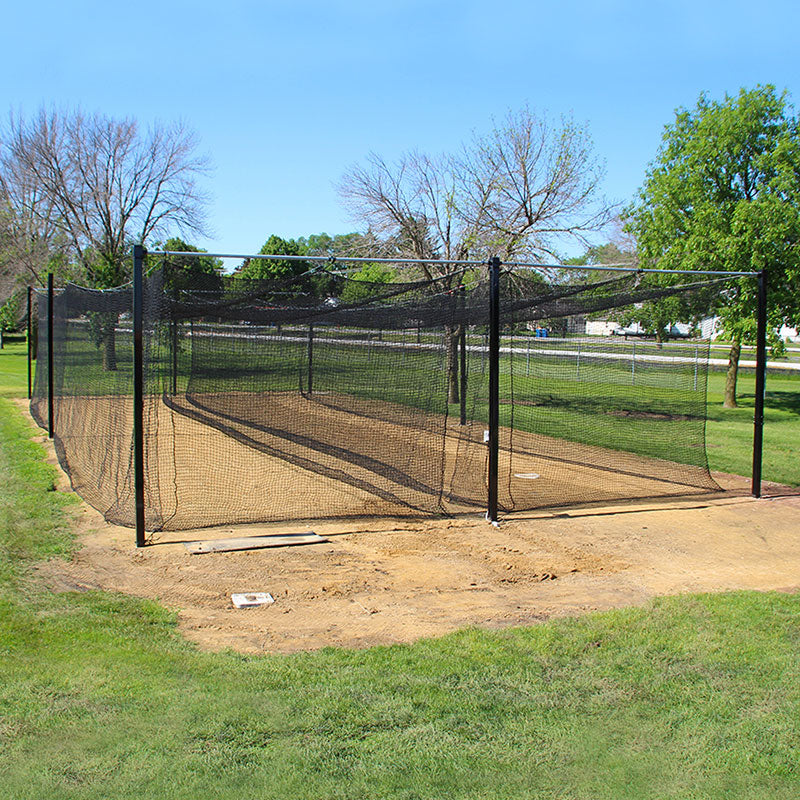

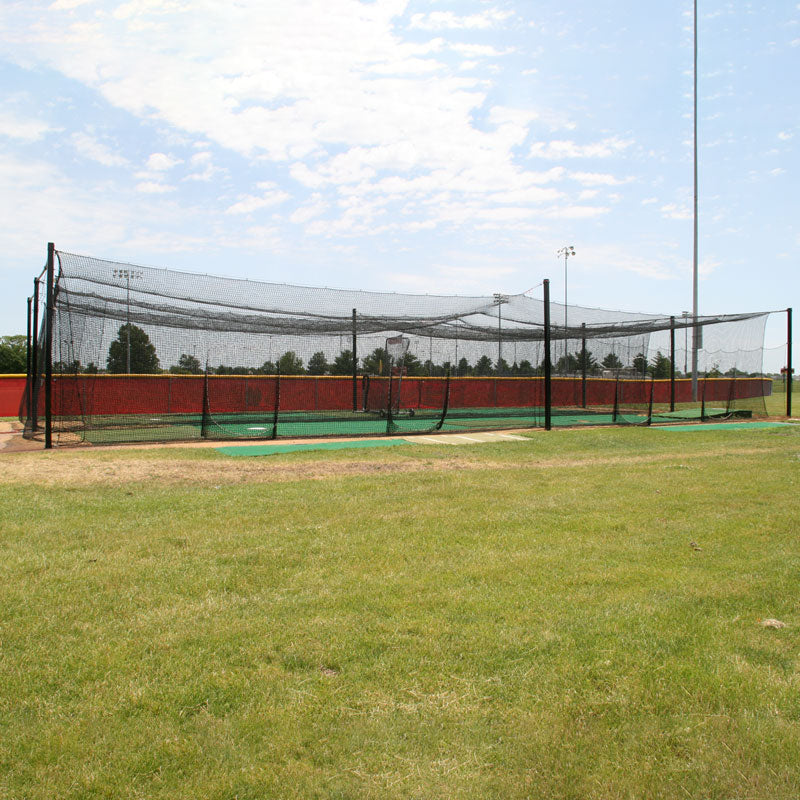

The classic, durable Douglas® Batting tunnel frame has withstood the test of time and has been manufactured for over 30 years. With the Douglas® Batting Tunnel frame, the poles can be set at the desired length and adjusted to fit custom net widths. Standard batting tunnel lengths are 55’/70’/75’ and widths are 12’/14’ wide. The unique frame design allows for the tunnel’s net to easily be adjusted at any time after the initial installation. The double frame system is installed with a shared-pole multiple cage design setup, eliminating the need for extra poles and ground footings. A Single and Triple batting tunnel frame system is also available.

Quick Specifications

• 14’, 4” square heavy-duty steel poles

• Black powder coat finish

• 2-3/8” OD 7-gauge galvanized steel crossbars

• Standard lengths: 55’, 70’, and 75’ (adjustable)

• Standard widths: 12’ or 14’ (adjustable)

• 12’ Maximum net height

• ¼” galvanized aircraft cable system

• Includes all the hardware for net installation

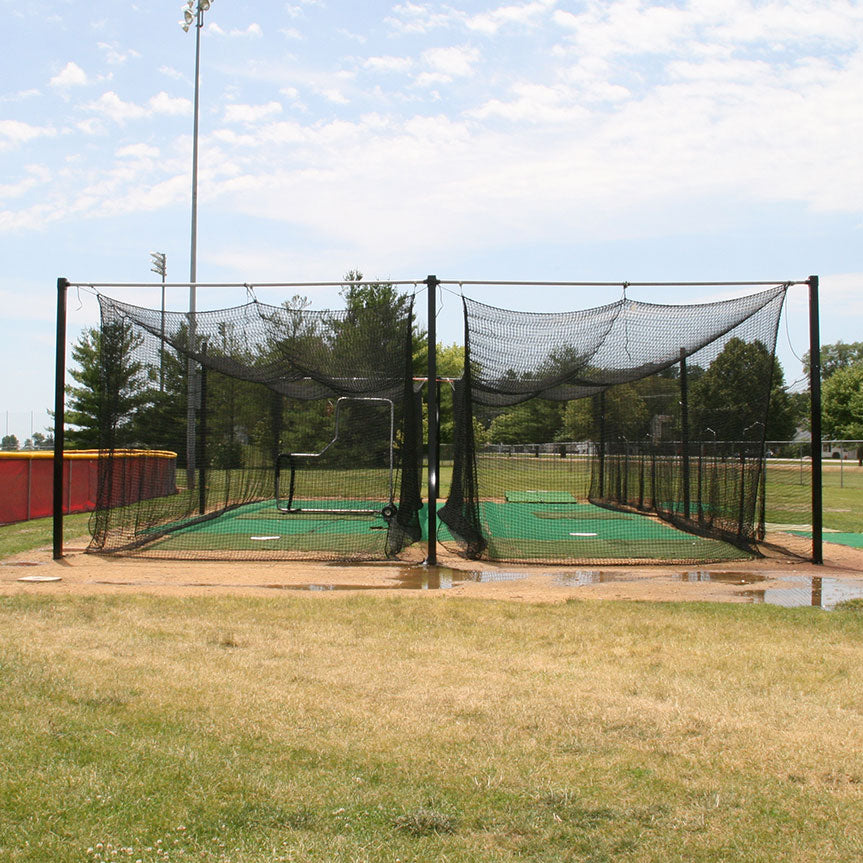

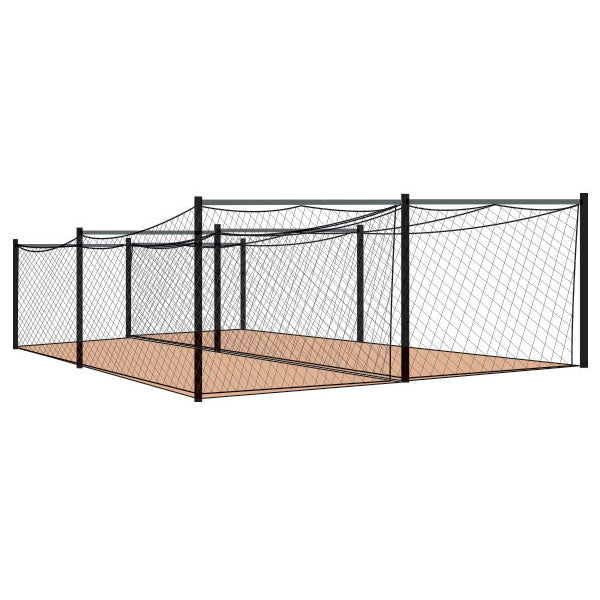

• Multiple cage design with shared center poles

• Batting tunnel nets are sold separately

Additional Info

FRAME

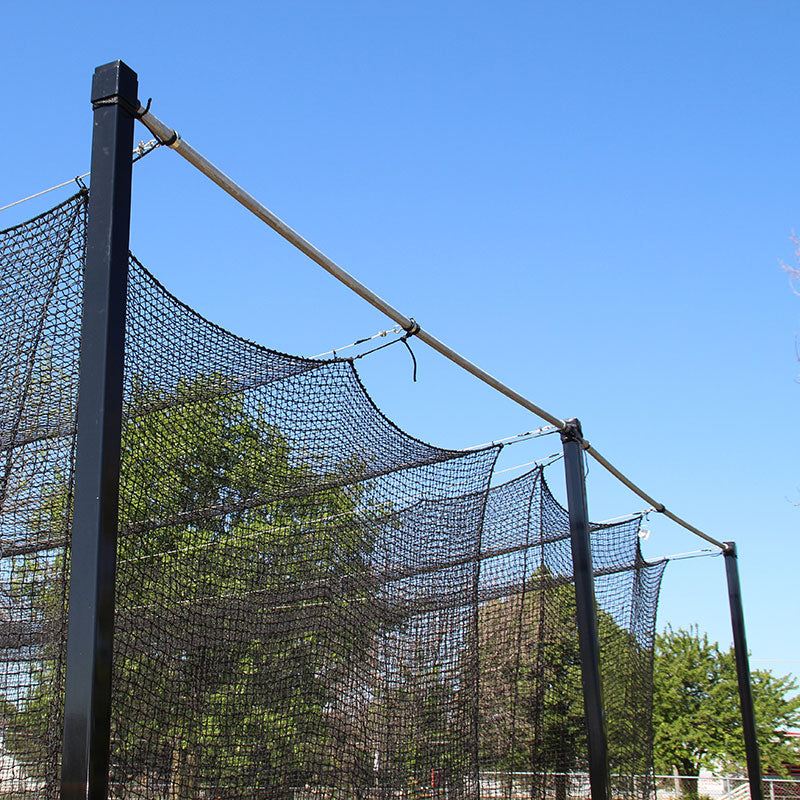

This heavy-duty frame is constructed using six, 14’, 4” square, heavy-duty steel poles. A black, baked-on powder coat finish on the steel frame provides the ultimate weather resistance and protection. The width of the frame is reinforced using 2-3/8” OD, heavy-duty 7-gauge galvanized steel crossbars used to attach the steel cables for attaching the net Crossbars feature Allied’s® zinc Flo-coat galvanization process for maximum protection. The frame poles are installed with 4” square 24” aluminum ground sleeves, allowing a maximum installed net height of 12’.

HARDWARE

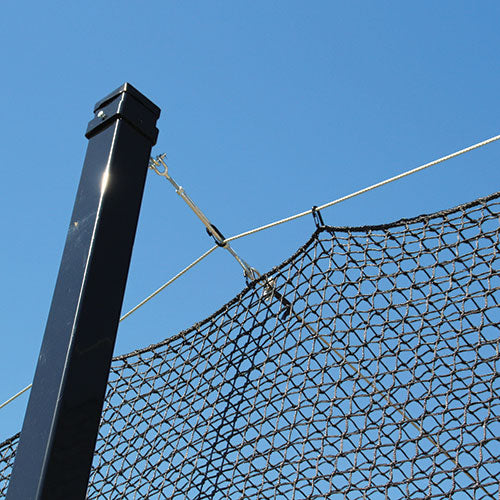

The cable support system comprises 1/4” galvanized aircraft cable with a 6,100 lb. break strength. Cables run the length of the tunnel and are attached to the end crossbars to support the net. All net-to-cable connections are constructed from long-lasting steel. All of the necessary hardware components, including quick links, turnbuckles, cable clamps, and carabiner clips, are provided. Batting tunnel nets are sold separately—choose the size that best suits your needs.

WARRANTY

Douglas® Batting Tunnel Frames include a 5-year limited warranty with a proper installation and regular, intended use.

Weight    1350 lbs
