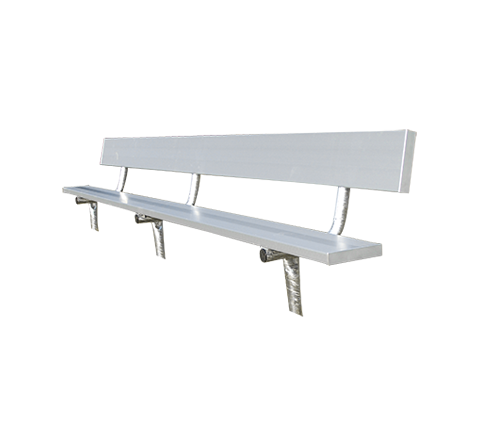

NRS Permanent Bench With Backrest (In-Ground Mount)
- 1Submit
request - 2Expert
calls you - 3Drawing
approval - 4Built &
shipped
Overview
The PB series is a permanent spectator bench: 2 x 10 anodized aluminum seat and backrest planks on 2-3/8 inch galvanized steel pipe legs that set directly into the ground. Once the legs are in concrete, the bench is a fixture of the site.
Six models run 6 to 24 feet and seat 4 to 16. Fields, parks, and sideline installations use in-ground mounting where benches should never move; powder coating is available when the frame needs to match a facility color.
Construction & Features
- 2 x 10 anodized aluminum seat plank and backrest
- 2-3/8 inch galvanized steel pipe leg design
- In-ground mount
- Optional powder coating
Models & Specifications
| Model # | Length | Seats | Weight | Documents |
|---|---|---|---|---|
| BE-PB00600 | 6' | 4 | 95 lbs | Spec Sheet | Drawing (PDF) | Drawing (DWG) |
| BE-PB00800 | 8' | 5 | 102 lbs | Spec Sheet | Drawing (PDF) | Drawing (DWG) |
| BE-PB01200 | 12' | 8 | 140 lbs | Spec Sheet | Drawing (PDF) | Drawing (DWG) |
| BE-PB01500 | 15' | 10 | 150 lbs | Spec Sheet | Drawing (PDF) | Drawing (DWG) |
| BE-PB02100 | 21' | 14 | 220 lbs | Spec Sheet | Drawing (PDF) | Drawing (DWG) |
| BE-PB02400 | 24' | 16 | 229 lbs | Spec Sheet | Drawing (PDF) | Drawing (DWG) |
Ordering & Warranty
Every National Recreation Systems product at Game Court Supplies is quote based. Request a quote with the model number you need and a real person follows up with pricing, freight, and lead time. NRS warrants aluminum planks for five years and the structural framework for one year, with repair or replacement at the manufacturer's option.
