Overview

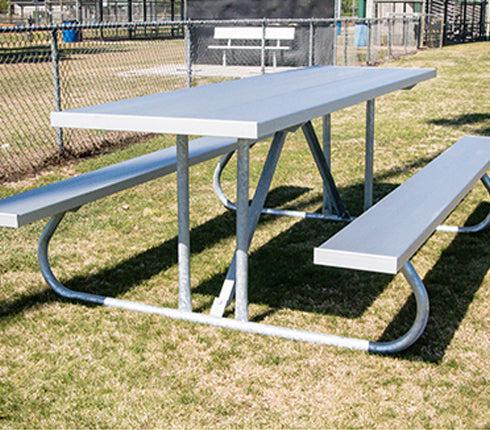

The standard gauge picnic table pairs 2 x 10 anodized aluminum planks with a 1-5/8 inch galvanized steel understructure. It sits between the all-aluminum table and the heavy gauge series: more anchor weight than aluminum legs, less steel than the 2-3/8 inch frame.
Five models cover 6 to 10 foot lengths at 152 to 246 pounds. HC models add an ADA space at one end of the table or at the center, where it counts as two ADA positions.
Construction & Features
- 2 x 10 anodized aluminum seat and table planks
- 1-5/8 inch galvanized steel leg frame
- HC models with an ADA space at the end or center of the table
- Center ADA layout equals two ADA positions
Models & Specifications
| Model # | Length | Weight | Documents |
|---|---|---|---|
| PT-SG06 | 6' | 152 lbs | Spec Sheet | Drawing (PDF) | Drawing (DWG) |
| PT-SG08 | 8' | 169 lbs | Spec Sheet | Drawing (PDF) | Drawing (DWG) |
| PT-SG08HC | 8' | 163 lbs | Spec Sheet | Drawing (PDF) | Drawing (DWG) |
| PT-SG09HC | 9' | 246 lbs | Drawing (PDF) | Drawing (DWG) |
| PT-SG10HC | 10' | 215 lbs |
Ordering & Warranty
Every National Recreation Systems product at Game Court Supplies is quote based. Request a quote with the model number you need and a real person follows up with pricing, freight, and lead time. NRS warrants aluminum planks for five years and the structural framework for one year, with repair or replacement at the manufacturer's option.
