Douglas® In-Line Basketball Adjustable Net System

Description

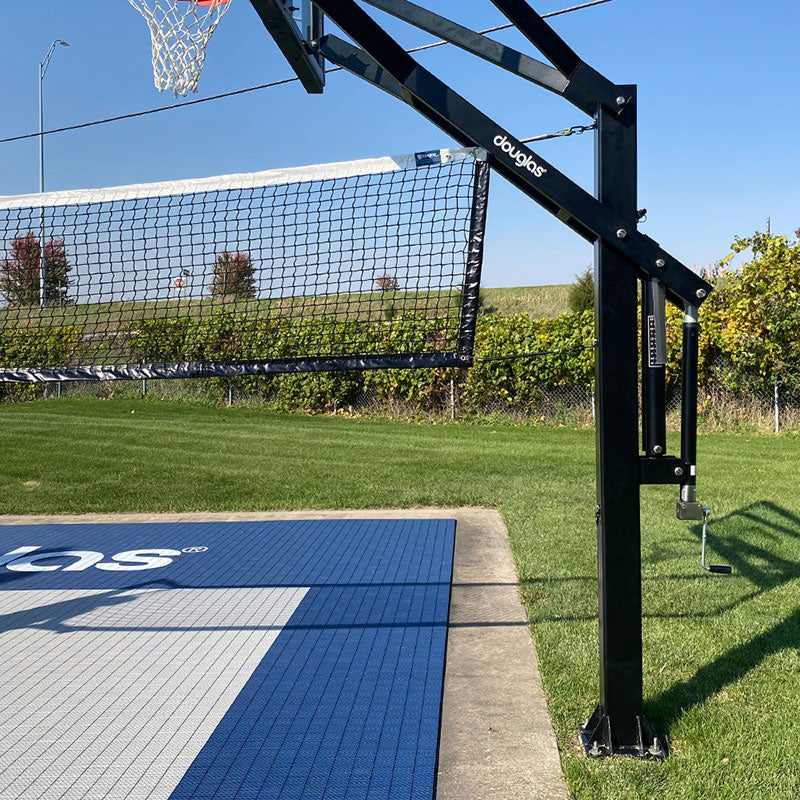

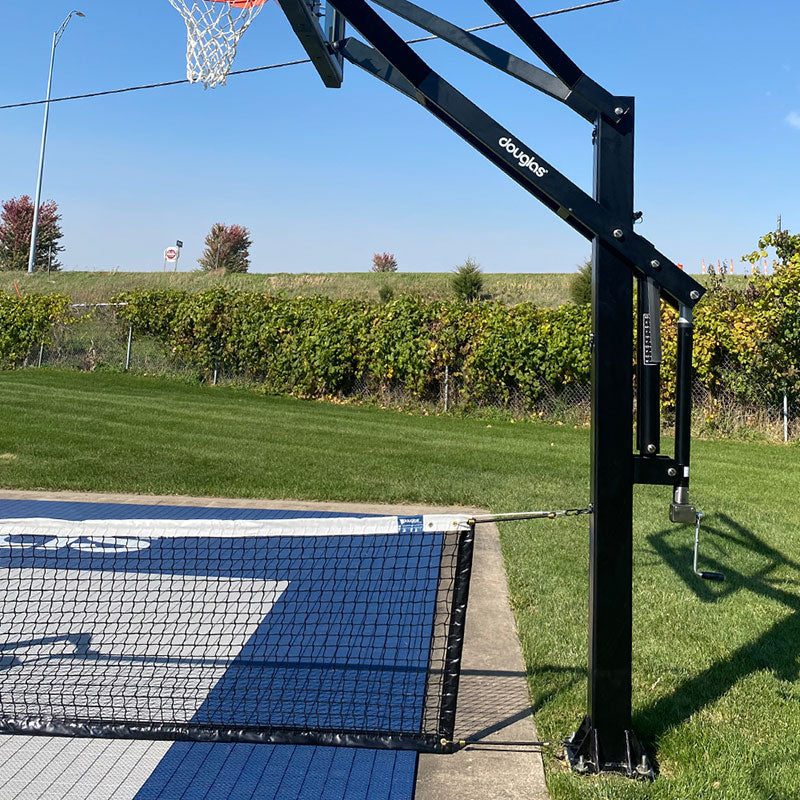

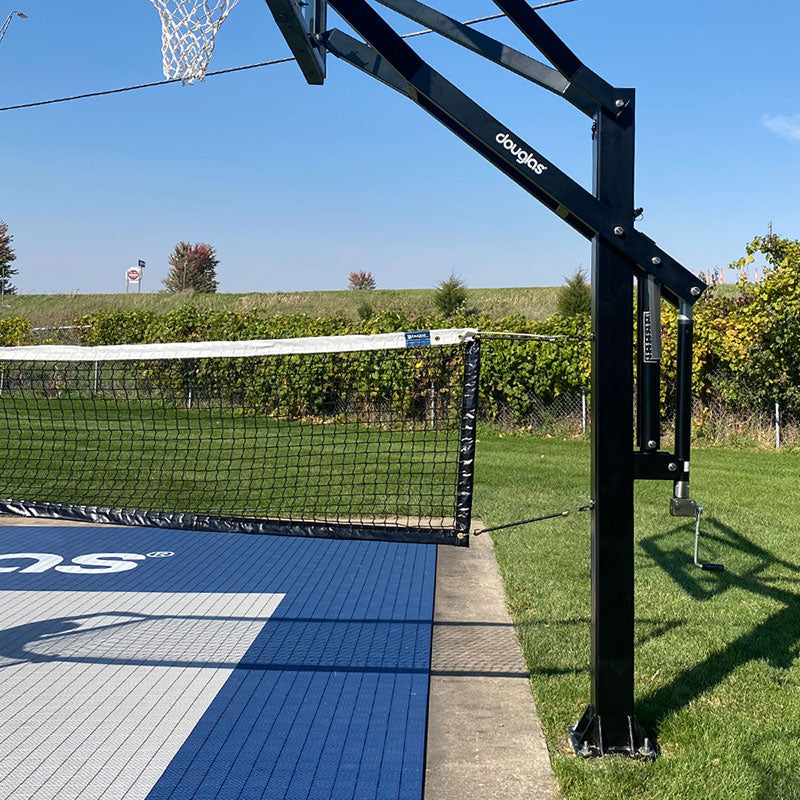

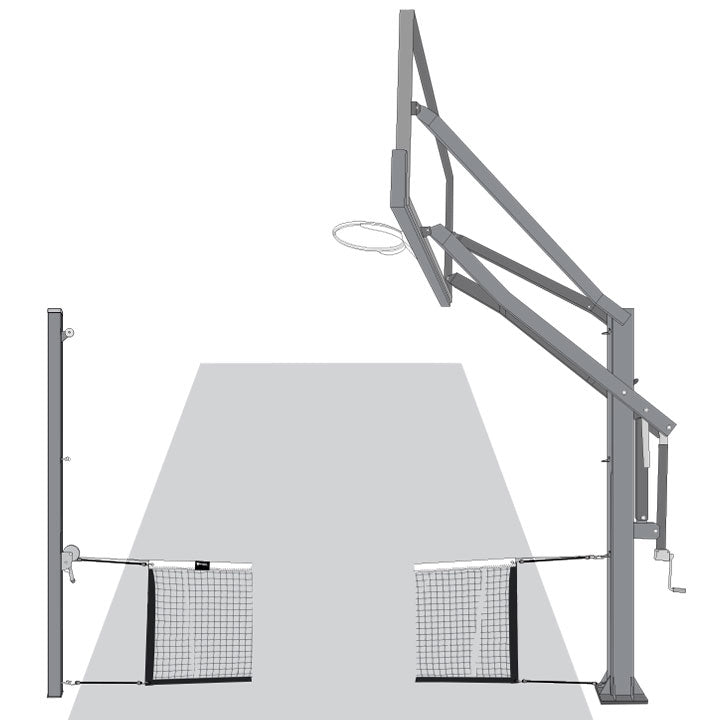

The In-Line Basketball Adjustable Aluminum Net System offers a unique space-saving approach to maximizing court space and functionality. By seamlessly integrating an adjustable net pole with an existing basketball pole, this system enables the effortless conversion of a single-sport court into a multi-sport facility.

The net system is designed to work with all Douglas® D-Pro™ MAX Adjustable and F-5™ Fixed Basketball Systems and will also work with most other brands.

KEY BENEFITS

• Multi-Sport Capability: Easily accommodates various sports, including pickleball, tennis, badminton, and volleyball, with simple net height adjustments.
• Efficient Space Utilization: The in-line design maximizes court area, making it ideal for smaller spaces or multi-purpose areas.
• Easy Net Adjustments: The user-friendly design allows for quick setup and effortless net height modifications.
• Durable Construction: The robust aluminum frame and weather-resistant powder-coated finish ensure long-lasting performance.
• Aesthetic Appeal: The sleek design complements any court environment, enhancing its overall appearance.

QUICK SPECIFICATIONS

• Net System adjusts from Pickleball to Volleyball height
• 4″ SQ extruded structural aluminum
• Black baked-on polyester powder coat finish
• Rugged, smooth operating net tensioning reel
• Removable handle for safety and convenience
• 34″ high Unicourt net is sold separately
• The system includes all adjustable hardware
• Ground sleeves are sold separately
• For indoor and outdoor use
• 5-Year Limited Warranty
• Basketball Systems are sold separately

Tennis Height

Pickleball Height

Volleyball Height

Badminton Height

Aluminum Pole This solid post is made in the USA and is constructed of 4″ square extruded structural aluminum with excellent bend resistance and is 100% rustproof. The post and steel hardware components are finished with a black, baked-on polyester powder coat finish. This strong finish adds resistance to chipping and the ultimate weather protection against the elements.

Poles are 10’6″ high and feature a continuous structured channel, so there are no external pressure points to damage the post’s finish. The built-in channel allows easy net height adjustment from 3′ pickleball to 8′ official volleyball play.

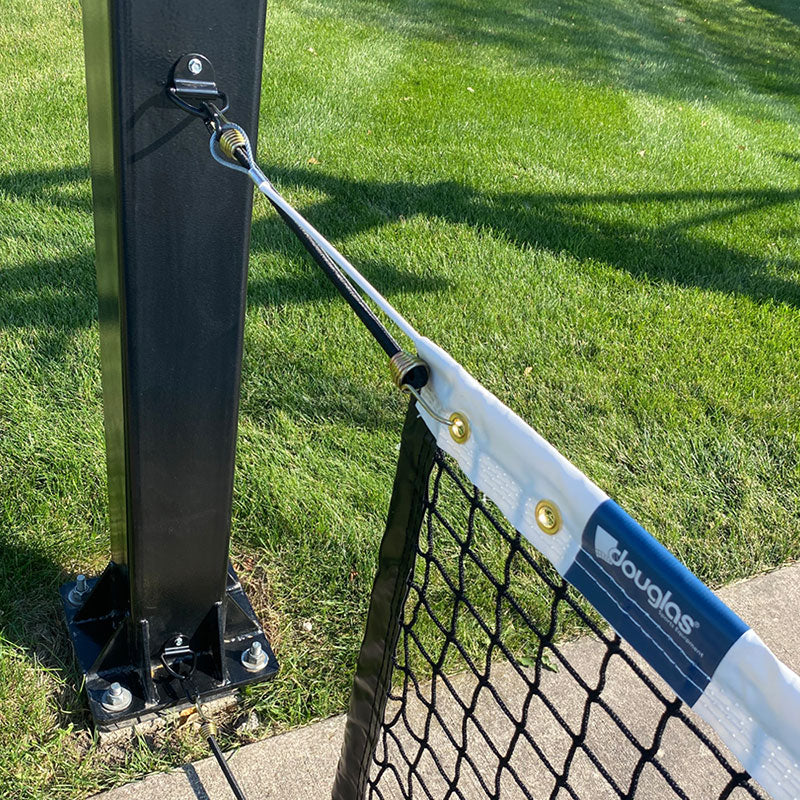

HARDWARE The rugged net tensioning reel case and gears are constructed of heavy-duty steel. This simple reel assembly is easy to use and has smooth operation. The handle has a comfortable contoured grip and is removable to prevent unwanted tampering.

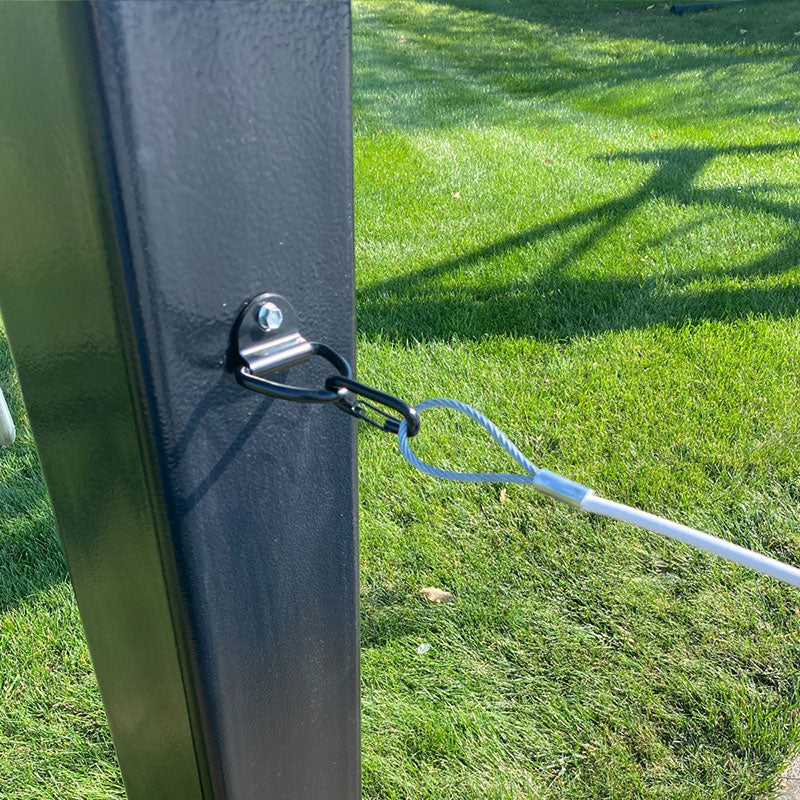

All hardware for a complete setup is provided, including (1) pulley, (6) eye hooks, bungee clips.

Additional net hooks need to be purchased to adjust to tennis and badminton heights.

ADJUSTABLE NET -Sold Separately The adjustable Unicourt™ net is sold separately.  The net is 34″ in height and is

available in (4) standard lengths or made to your custom size. The length of the net should be 4′ shorter than the post spacing, leaving a 2′ gap on either side of the net.

The provided hardware includes (1) pulley, (6) eye hooks and bungee clips.

GROUND SLEEVES & INSTALLATION The pole can be installed direct burial or with optional 24″ long steel ground sleeves for semi-permanent installation.

Recommended ground sleeves allow for easy removal and reinstallation of the system, making it ideal for seasonal or temporary setups.

WARRANTY 5-Year Limited Warranty
