Overview

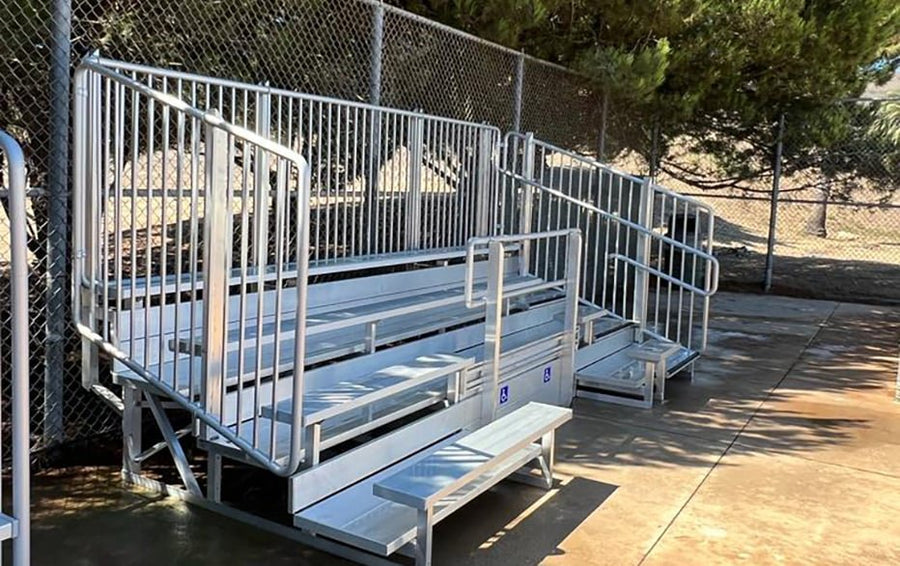

NRS ADA Series bleachers build wheelchair seating areas with companion seats into an all-aluminum bleacher so schools, parks, and sports facilities can meet ADA accessibility requirements. This series carries a vertical picket guardrail around the elevated rows.
Twelve models cover 5, 8, and 10 row heights in 15 to 27 foot lengths, seating 34 to 128 spectators plus 2 or 4 wheelchair spaces per unit, each with companion seating. A vertical aisle with handrail serves the upper rows.
NRS points to four planning guidelines for ADA bleachers: quantity, where the number of wheelchair spaces follows the ADA chart for the seating capacity; location, with wheelchair spaces an integral part of the seating plan; access, with every space on an accessible route; and sightlines, with spaces dispersed so viewing angles match the rest of the audience.
Construction & Features
- ADA seating area with companion seats
- Aluminum angle understructure with an 8 inch rise per row
- 2 x 10 anodized aluminum seat planks
- Double mill finish aluminum foot planks
- 1 x 6 riser planks, doubled on the top row
- Vertical aisle with handrail
- Vertical picket guardrail
Models & Specifications
| Model # | Rows | Length | Seats | Weight (lbs) | Documents |
|---|---|---|---|---|---|
| NA-0515ADA_VP | 5 | 15' | 34+2HC | 1,111 |
Drawing PDF Drawing DWG |
| NA-0519.5ADA_VP | 5 | 19.5' | 45+2HC | 1,280 |
Drawing PDF Drawing DWG |
| NA-0521ADA_VP | 5 | 21' | 48+2HC | 1,414 |
Drawing PDF Drawing DWG |
| NA-0527ADA_VP | 5 | 27' | 58+4HC | 1,707 |
Drawing PDF Drawing DWG |
| NA-0815ADA_VP | 8 | 15' | 58+2HC | 1,791 |
Drawing PDF Drawing DWG |
| NA-0819.5ADA_VP | 8 | 19.5' | 75+2HC | 2,063 | Drawing DWG |
| NA-0821ADA_VP | 8 | 21' | 77+4HC | 2,311 |
Drawing PDF Drawing DWG |
| NA-0827ADA_VP | 8 | 27' | 100+4HC | 2,743 |
Drawing PDF Drawing DWG |
| NA-1021ADA_VP | 10 | 21' | 99+4HC | 2,888 |
Drawing PDF Drawing DWG |
| NA-1027ADA_VP | 10 | 27' | 128+4HC | 3,443 |
Drawing PDF Drawing DWG |
| NA-1015ADA_VP | 10 | 15' | 74+2HC | ||
| NA-1019.5ADA_VP | 10 | 19.5' | Drawing DWG |
Ordering & Warranty
Like all NRS seating, this product is sold on a quote basis. Submit a quote request with the model you need and a real person follows up with current pricing, freight to your site, and lead time. National Recreation Systems backs its bleachers with a 5 year warranty on aluminum planks and aluminized chain link and a 1 year warranty on structural framework and galvanized chain link, with defective components repaired or replaced.
