Standard Bonded Foam Wall Pad

Standard Bonded Foam Wall Pad

SKU: 4120

Ask About This Product View full details

Have a Question About This Product?

Fill out the form below and we’ll get back to you with more details about Standard Bonded Foam Wall Pad.

  • Description
  • Additional Info
  • Support Documents
Description

Description

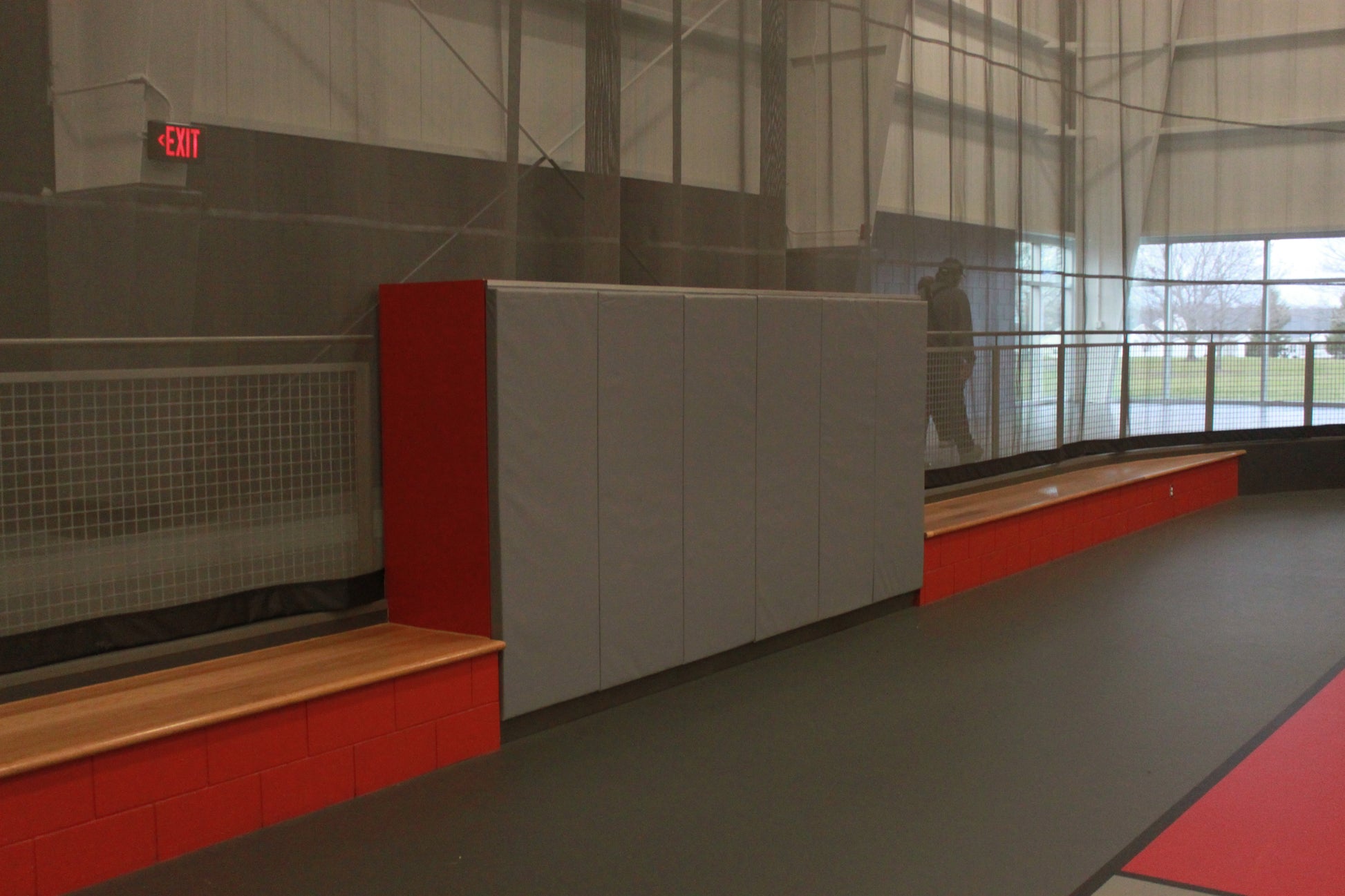

Provide safe wall surfaces for your facility with bonded polyurethane wall padding. The 4120 pad measures as a 2' x 6' x 2" segment which can be multiplied to cover the wall surface. Bonded foam pads pass the industry standard ASTM F2440-11 for impact safety, ensuring high quality protection for your heavily utilized play areas. Bonded wall pads can be customized with color and graphic options.

  • Impact bonded foam is recommended for areas with heavy play and short distances between court and wall.
  • 2" thick foam pad covered in 14-oz vinyl is 6' tall x 2' wide with 1" nailing lip on top and bottom.
  • Custom sizes and alternative attachment options available.
Additional Info

Additional Info

Wall padding standard size (Part number 4120-STD) shall be 6' [1.82 m] x 2' [0.9 m] with 1" [25.4 mm] nailing margin with height options (Part number 4120-NSD) available for both 7' [2.134 m] x 2' [0.9 m] and 8' [2.438 m] x 2' [0.9 m] with 1" [25.4 mm] nailing margin on top and bottom of each panel. Nailing margin reduces foam height from 6’ [1.8 m] to 5’-10” [1.77 m], 7’ [2.134 m] to 6’-10” [2.083 m], and 8’ [2.44 m] to 7’-10” [2.39 m] respectively. Pads shall be constructed using 2" [50.8 mm] thick 6 lbs. density bonded polyurethane foam cemented to 7/16" [11.11 mm] oriented strand board. Cover material shall be 14-ounce polyester laminated vinyl (19-ounce polyester laminated vinyl optional) stapled to backing every two inches. Vinyl to be flame retardant material, which meets NFPA 701, ASTM E84, and CSFM (California State Fire Marshall). Vinyl shall be available in white, yellow, orange, red, kelly green, forest green, royal blue, marine blue, navy blue, gray, black, burgundy, beige, and purple. Custom cutting and fitting of padding may be done in field to ensure proper fit. Furring strips by others.

Product tested per ASTM F1292-09 and meets all requirements of ASTM F2440-11.

Support Documents

Support Documents

Type File
Bid Specs 4120_spec_-_rev_d.pdf
Installation Instructions wall_pad_installation_manual_-_rev_d.pdf
