Description

Description

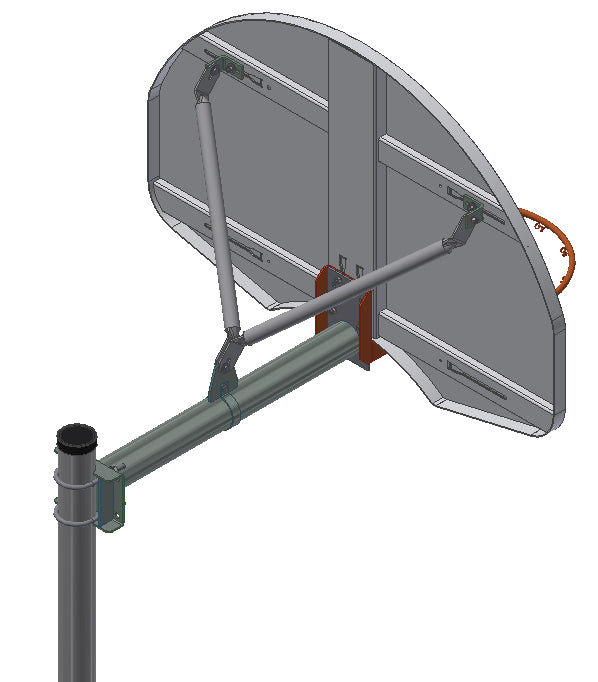

Designed to complement playground basketball courts, the AAB45R 4-1/2" O.D. rear-mount straight basketball post with 4' horizontal extension arm provides support for backboard and rim weighing up to 100 pounds combined. Extension arm provides a 48" safe play distance and includes a V-brace to connect to board to reduce vibration. Extension arm can be manually adjusted onsite for younger kids to play on the unit. This post is only compatible with rear-mount fan-shape steel backboards.

  • Recommended Play Level: NIRSA, Recreation, Youth
  • Standard 4-1/2" O. D. post with 4' extension is a
Additional Info

Additional Info

Build your basketball court by first choosing an appropriate backstop. Straight-arm outdoor posts are offered in several styles, sizes and safe play zones to fit your facility's needs. Posts are formed from heavy wall galvanized steel for superior protection against weather elements. Each post is approximately 13' tall, with 3' to be installed in a 4' x 2' concrete footing to ensure long-lasting post stability. 5-9/16" and 6-5/8" O.D. posts are comprised of Schedule 40 steel, providing unmatched strength and durability to the units. All posts contain a backboard mounting plate welded to post end for hassle-free attachment to most backboards.  Powdercoated posts available, please call for quotation. PPWR Series post padding is optional and recommended for player safety.

Support Documents

Support Documents

Type File
Bid Specs aab45r_spec_-_rev_e.pdf
Installation Instructions aab45r_installation_manual_-_rev_b.pdf
