Standard Neoprene Class A Foam Wall Pad

Standard Neoprene Class A Foam Wall Pad

SKU: 4130

Ask About This Product View full details

Have a Question About This Product?

Fill out the form below and we’ll get back to you with more details about Standard Neoprene Class A Foam Wall Pad.

  • Description
  • Additional Info
  • Support Documents
Description

Description

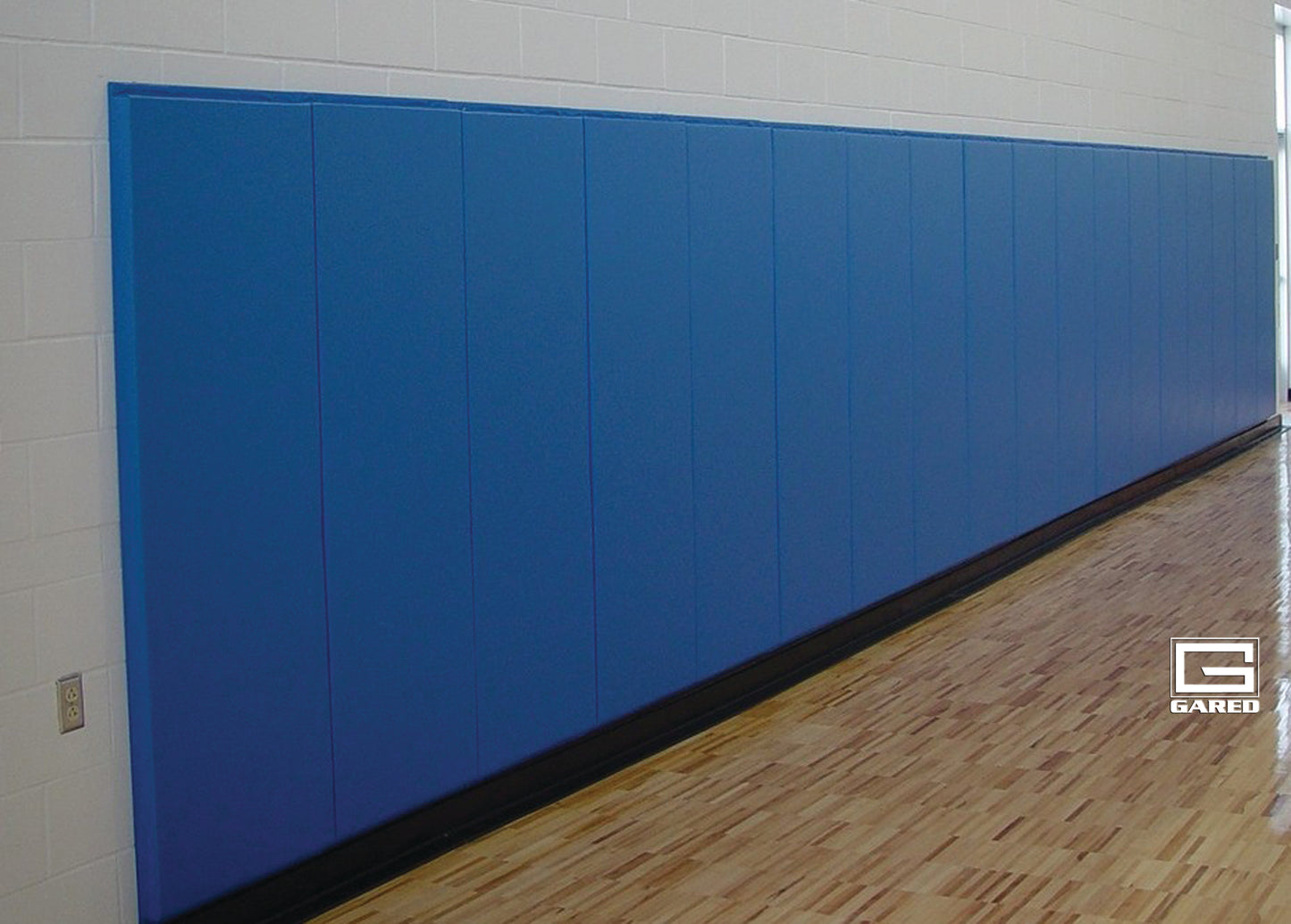

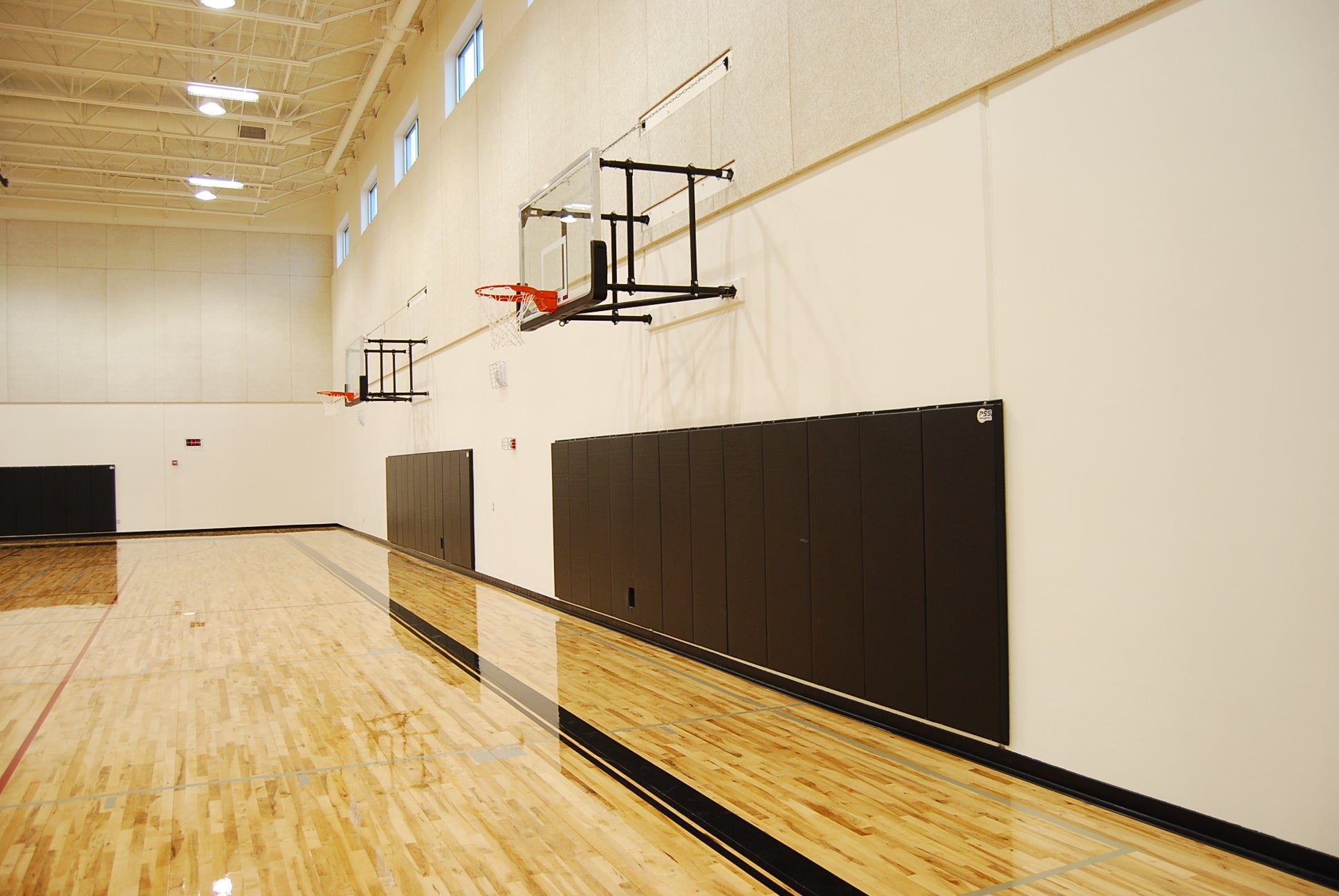

Provide safe wall surfaces for your facility with standard neoprene wall padding. The 4130 pad measures as a 2' x 6' x 2" segment which can be multiplied to cover the wall surface. Neoprene foam is independently tested to meet ASTM E84 just like the vinyl covering, but we go a step further and test this foam assembled to the board and covered in the vinyl to meet your class A fire rating and impact needs. Pads can be customized with color and graphic options.

  • Fire retardant foam is manufactured with a Class A rating to pass even the most stringent local fire codes.
  • 2" thick foam pad covered in 14-oz vinyl is 6' tall x 2' wide with 1" nailing lip on top and bottom.
  • Custom sizes and alternative attachment options available.
Additional Info

Additional Info

Wall padding standard size shall be 6' x 2' with 1" nailing margin on top and bottom of each panel. Nailing margin reduces foam height from 6’ [1.8 m] to 5’-10” [1.77 m]. Pads shall be constructed using 2” thick CR SafGuard medium fire retardant neoprene foam, as manufactured and patented by Chestnut Ridge Foam, Inc. or equal, and meeting ASTM E84 with a Class A rating meeting Flame-Spread Index of 25 or less, and Smoke Development index of 450 or less. Foam shall be cemented to 7/16” oriented strand board. Cover material shall be 14-ounce polyester laminated vinyl as manufactured by Value Vinyls or equal, attached to backing with staples every two inches. Vinyl to be flame retardant material meeting ASTM E84, with a Class A rating. Pad assembly shall meet ASTM E84 with a Class A rating. Vinyl shall be available in white, yellow, orange, red, kelly green, forest green, royal blue, marine blue, navy blue, gray, black, maroon, beige, teal and purple. See model number code chart for specific model number. Custom padding (thickness, material, and color) and size of padding (height and width) must have written description.

Custom cutting and fitting of padding may be done in field to ensure proper fit. Furring strips by others.

Support Documents

Support Documents

Type File
Bid Specs 4130_spec_-_rev_d.pdf
Installation Instructions wall_pad_installation_manual_-_rev_d.pdf
