Top-Roll Gymnasium Curtain

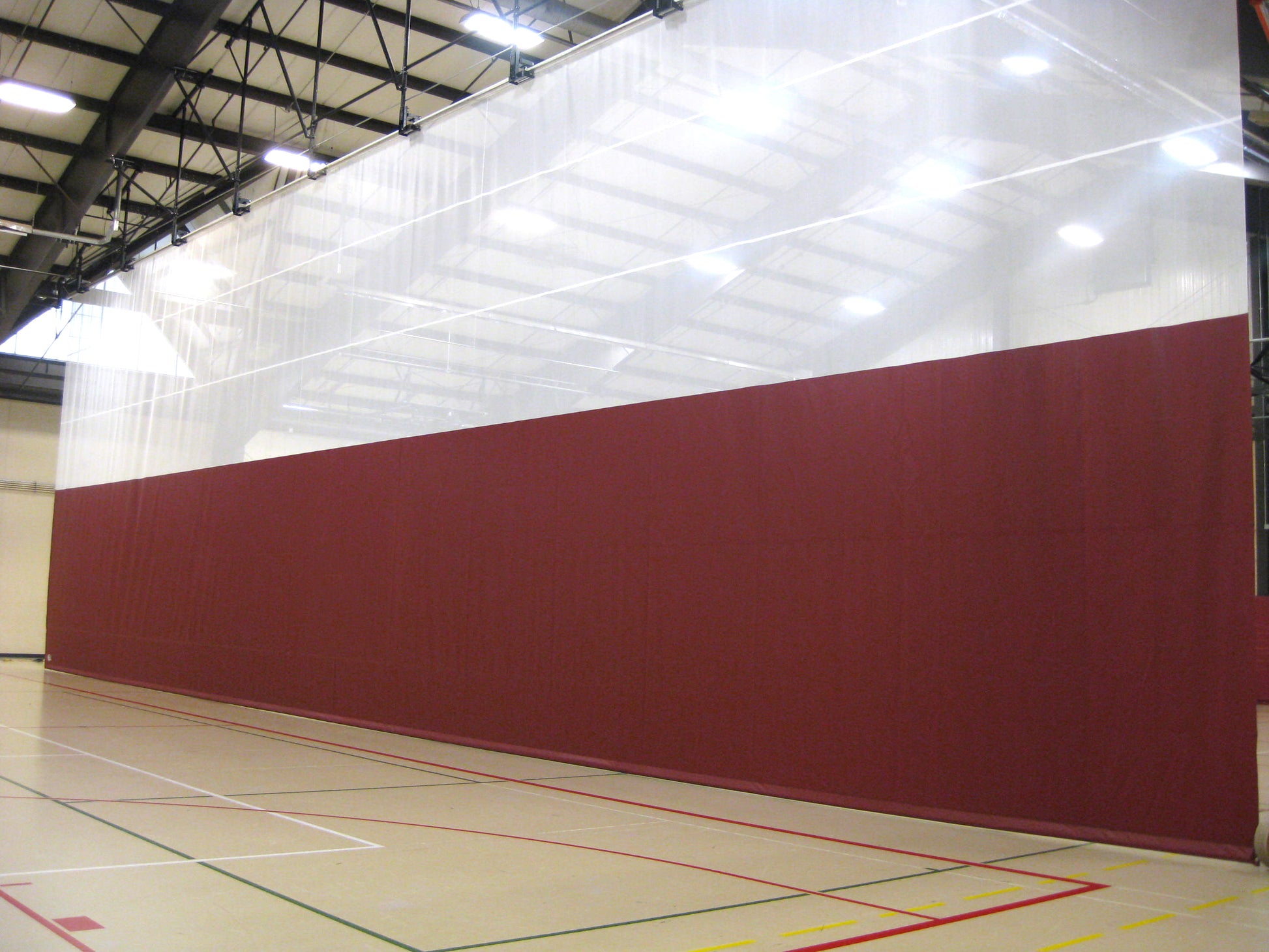

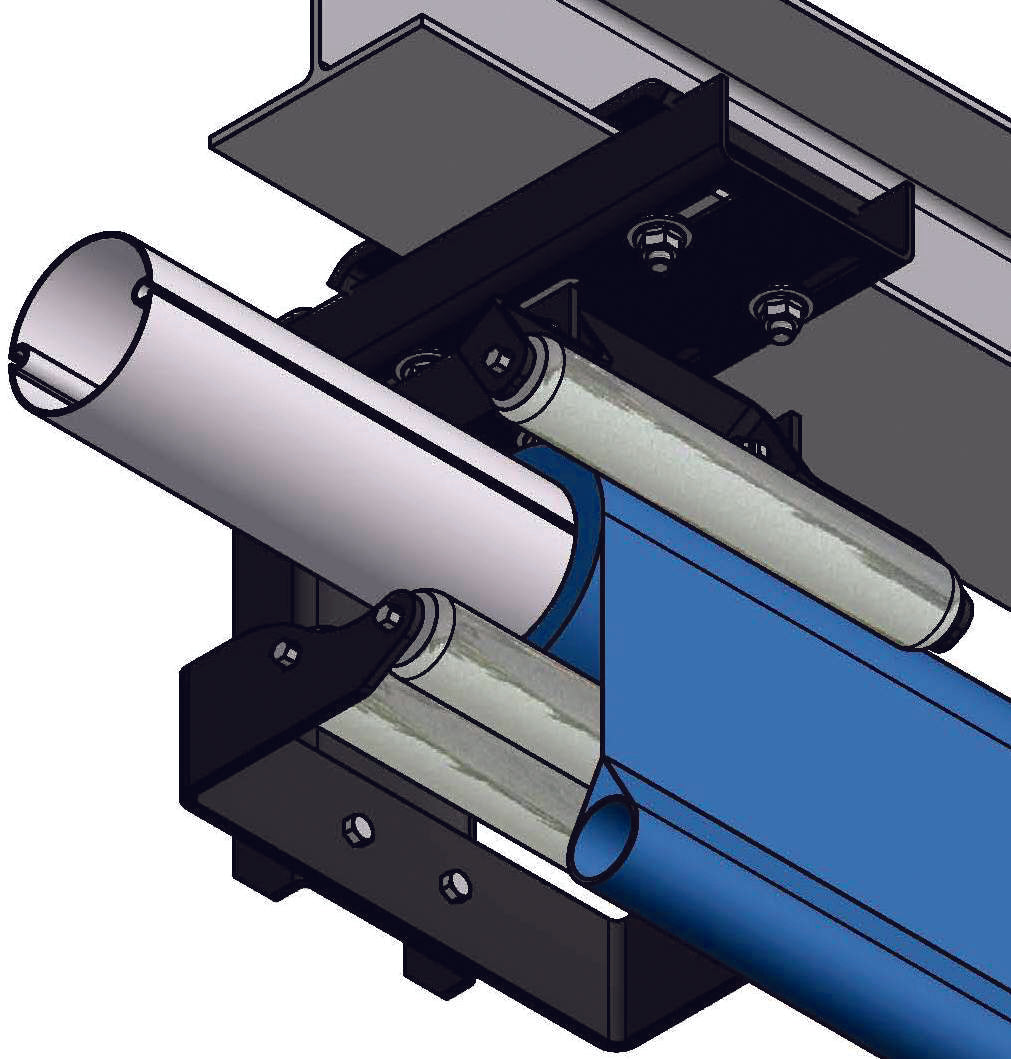

The 4040XL TOP ROLL GYM DIVIDER CURTAIN provides a solution for those facilities with height clearance issues .This low profile divider curtain is designed to operate without belts, cables, exposed wires or guide systems. Fabric rolls within 13.5" of ceiling overhead for maximum clearance. Innovative and extremely quiet internal tubular motor with all electrical components neatly packaged inside the drive tube. Newly designed expandable roller system. Larger drive tube with vented ends for cooling of the motors. 19 oz. or 22oz. vinyl lower section and 9 oz. vinyl coated mesh upper section. Curtain has welded seams, fully padded bottom batten, and no exposed hardware. Mounting assemblies allow for easy installation and leveling. Clean look with no wires or cables exposed. Internal driveshaft motors enable lower power requirement and lower torque to move with similar speed as standard external motors. Standard motors pull 15 amps, ours pulls only 3.5 amps. Internal motors allow for larger variation of building configurations with space constraints. Increased diameter aluminum drive pipe for speeding up the roll time and prolonging curtain vinyl life. New ball bearing roller assembly designed with longer rollers to distribute the vinyl load, reducing stress on the material Hardened steel rollers eliminate dirt buildup and tracking marks on vinyl that wood or rubber rollers create.
