Touch Screen Group Controller

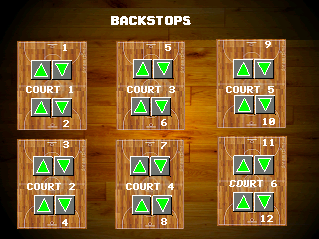

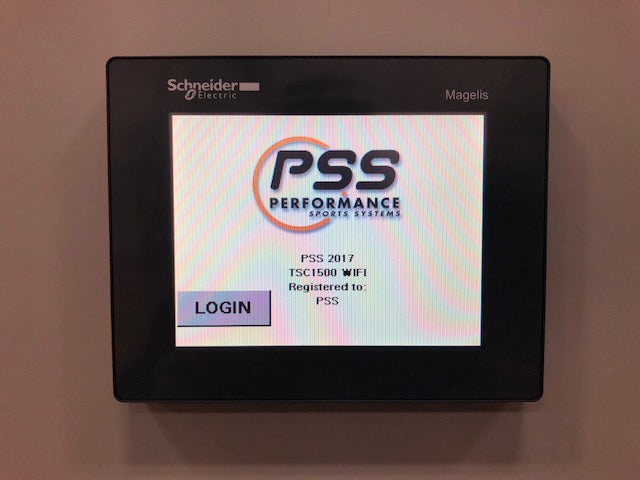

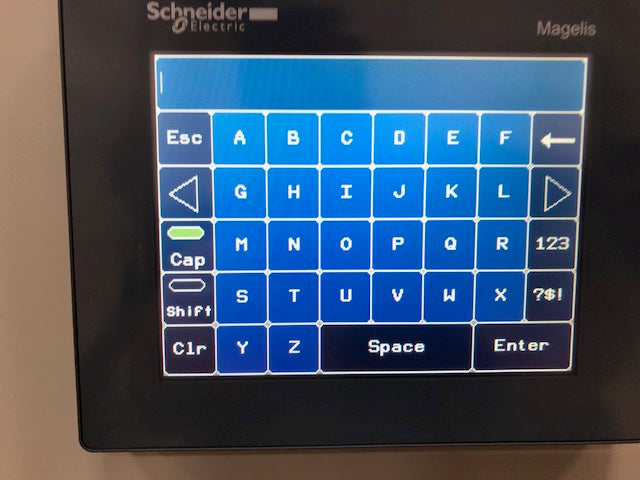

The TSC1500XL Total System Control unit allows one touch operation of basketball backstops, divider curtains, lighting, scoreboards, P.A. systems or other electrically controlled equipment. The TSC1500XL will include a single relay box capable of operating 12 devices. The system is expandable up to 16 relay boxes until 192 devices are reached. The system uses a 5.7” touch screen showing the equipment layout for each court and any desired scenario of operation. Each device can be operated individually of simultaneously in any direction up or down. The quantity of devices is only limited by the amount of power provided. The TSC1500XL allows up to 8 fast court scenarios for the user to add or delete as they establish their court needs. Features manual control override with 15’ cord, which is to be used at the relay panel as a back-up to the touch screen. (Systems with out these features will not be considered equal). The system is password controlled to prevent unauthorized use, and infinite users can be created and complex Alpha Numeric passwords. “Press and hold” button feature prevents authorized operator from walking away while equipment is in motion. Features auto shut-off after thirty seconds of non-use.
